echor downloads wastewater discharge and air emission data for EPA permitted facilities using the EPA ECHO API.
echor is on CRAN:
install.packages("echor")Or install the development version:
install.packages('echor', repos = 'https://mps9506.r-universe.dev')We can look up plants by permit id, bounding box, and numerous other parameters. I plan on providing documentation of available parameters. However, arguments can be looked up here: get_cwa_rest_services_get_facility_info
library(echor)
## echoWaterGetFacilityInfo() will return a dataframe or simple features (sf) dataframe.
df <- echoWaterGetFacilityInfo(output = "df",
p_c1lon = '-96.387509',
p_c1lat = '30.583572',
p_c2lon = '-96.281422',
p_c2lat = '30.640008',
p_ptype = "NPD")
head(df)
#> # A tibble: 4 × 26
#> CWPName SourceID CWPStreet CWPCity CWPState CWPStateDistrict CWPZip
#> <chr> <chr> <chr> <chr> <chr> <chr> <chr>
#> 1 CARTERS CREEK WWTP TX00471… 2200 N F… COLLEG… TX 09 77845
#> 2 CENTRAL UTILITY P… TX00027… 1584 TAMU COLLEG… TX 09 77843
#> 3 HEAT TRANSFER RES… TX01065… 0.25MI S… COLLEG… TX 09 77845
#> 4 TURKEY CREEK WWTP TX00624… 3000FT W… BRYAN TX 09 77807
#> # ℹ 19 more variables: MasterExternalPermitNmbr <chr>, RegistryID <chr>,
#> # EPASystem <chr>, Statute <chr>, FacStdCountyName <chr>,
#> # CWPNAICSCodes <chr>, FacLat <dbl>, FacLong <dbl>,
#> # CWPTotalDesignFlowNmbr <dbl>, AIRIDs <chr>, FacPopDen <dbl>,
#> # CWPTerminationDate <date>, CWPMajorMinorStatusFlag <chr>,
#> # NPDESDataGroupsDescs <chr>, CWPInspectionCount <dbl>,
#> # CWPDaysLastInspection <dbl>, CWPDateLastInspEPA <date>, …The ECHO database can provide over 270 different columns. echor
returns a subset of these columns that should work for most users.
However, you can specify what data you want returned. Use
echoWaterGetMeta() to return a dataframe with column
numbers, names, and descriptions to identify the columns you want
returned. Then include the column numbers as a comma separated string in
the qcolumns argument. In the example below, the
qcolumns argument indicates the dataframe will include
plant name, 8-digit HUC, latitude, longitude, and total design flow.
df <- echoWaterGetFacilityInfo(output = "df",
p_c1lon = '-96.387509',
p_c1lat = '30.583572',
p_c2lon = '-96.281422',
p_c2lat = '30.640008',
qcolumns = '1,14,23,24,25',
p_ptype = "NPD")
head(df)
#> # A tibble: 4 × 6
#> CWPName SourceID FacStdCountyName CWPNAICSCodes FacLat FacLong
#> <chr> <chr> <chr> <chr> <dbl> <dbl>
#> 1 CARTERS CREEK WWTP TX0047163 BRAZOS COUNTY <NA> 30.6 -96.3
#> 2 CENTRAL UTILITY PLANT TX0002747 BRAZOS COUNTY <NA> 30.6 -96.3
#> 3 HEAT TRANSFER RESEARCH TX0106526 BRAZOS COUNTY <NA> 30.6 -96.4
#> 4 TURKEY CREEK WWTP TX0062472 BRAZOS COUNTY <NA> 30.6 -96.4When returned as sf dataframes, the data is suitable for immediate spatial plotting or analysis.
library(ggspatial)
library(sf)
library(ggrepel)
library(prettymapr)
df <- echoWaterGetFacilityInfo(output = "sf",
p_c1lon = '-96.387509',
p_c1lat = '30.583572',
p_c2lon = '-96.281422',
p_c2lat = '30.640008',
p_ptype = "NPD")
ggplot(df) +
annotation_map_tile(zoomin = -1, progress = "none") +
geom_sf(inherit.aes = FALSE, shape = 21,
color = "darkred", fill = "darkred",
size = 2, alpha = 0.25) +
geom_label_repel(data = df, aes(label = SourceID,
geometry = geometry),
stat = "sf_coordinates",
point.padding = .5, min.segment.length = 0.1,
size = 2, color = "dodgerblue") +
theme_mps_noto() +
labs(x = "Longitude", y = "Latitude",
title = "NPDES permits near Texas A&M",
caption = "Source: EPA ECHO database")
Use echoGetEffluent() or echoGetCAAPR() to
download tidy dataframes of permitted water discharger Discharge
Monitoring Report (DMR) or permitted emitters Clean Air Act annual
emissions reports. Please note that all variables are returned as
character vectors.
df <- echoGetEffluent(p_id = 'tx0119407', parameter_code = '00300')
df <- df %>%
mutate(dmr_value_nmbr = as.numeric(dmr_value_nmbr),
monitoring_period_end_date = as.Date(monitoring_period_end_date,
"%m/%d/%Y")) %>%
filter(!is.na(dmr_value_nmbr) & limit_value_type_code == "C1")

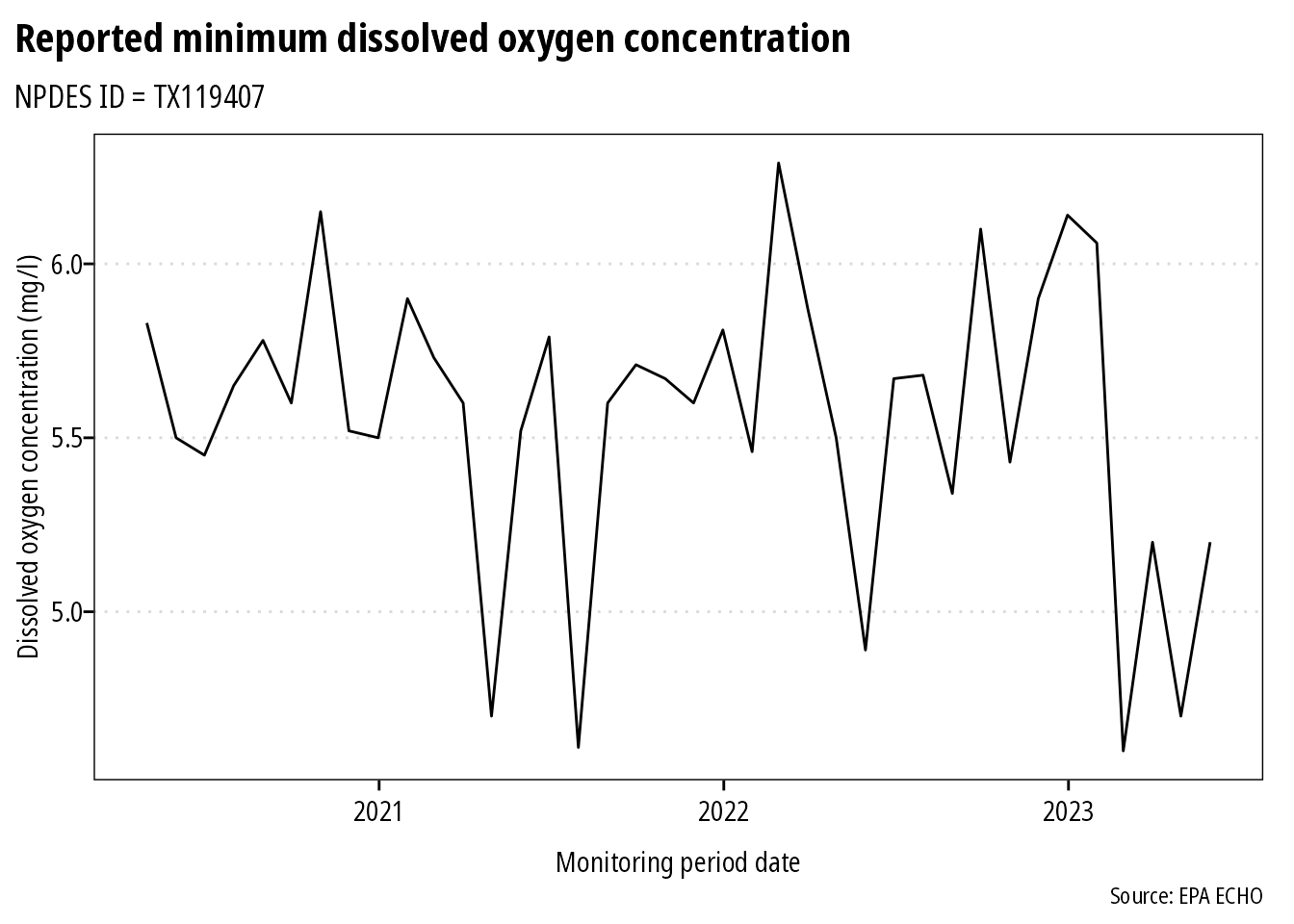

ggplot(df) +
geom_line(aes(monitoring_period_end_date, dmr_value_nmbr)) +
theme_mps_noto() +
labs(x = "Monitoring period date",
y = "Dissolved oxygen concentration (mg/l)",
title = "Reported minimum dissolved oxygen concentration",
subtitle = "NPDES ID = TX119407",
caption = "Source: EPA ECHO")
